What is runner in injection moulding?

Your plastic parts have defects, and you can't figure out why. This leads to wasted material and project delays. Understanding the runner system¹ is the key to perfect parts.

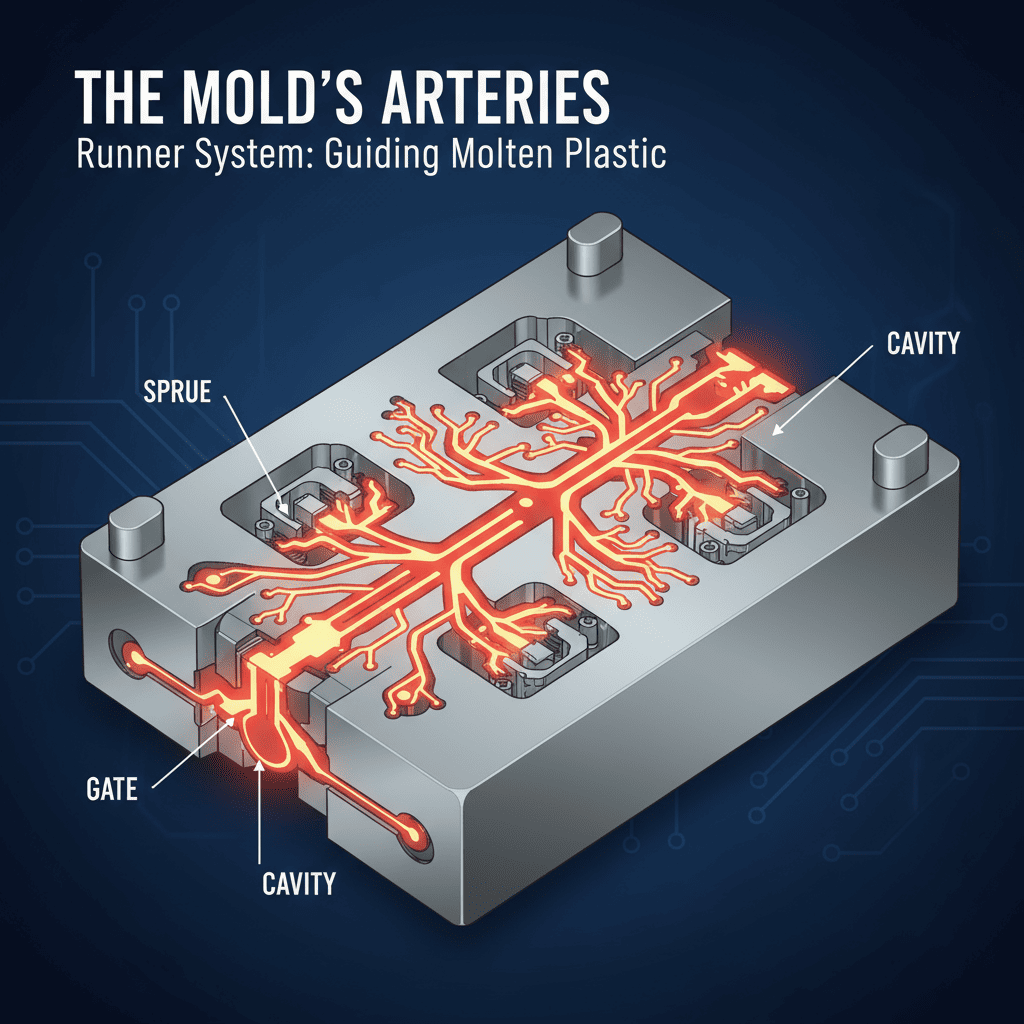

The runner in an injection mold² is the channel system that guides molten plastic³ from the sprue to the cavity. Think of it as the mold's arteries, delivering the lifeblood—the plastic—precisely where it needs to go to form your part. Its design is critical for quality.

But a runner is so much more than just a simple channel. I've seen countless projects succeed or fail based on this one aspect of mold design. At our factory, we treat the runner system with the same precision as the part cavity itself. It’s the hidden component that controls everything from part strength to appearance. Let's dig deeper into how this system works and why getting it right is so important for your project's success.

How does the runner system actually work?

Your parts have inconsistent filling, causing sinks or shorts. You suspect the mold design. These defects mean rejected parts and production delays, costing you time and money. A well-designed runner ensures every cavity fills evenly.

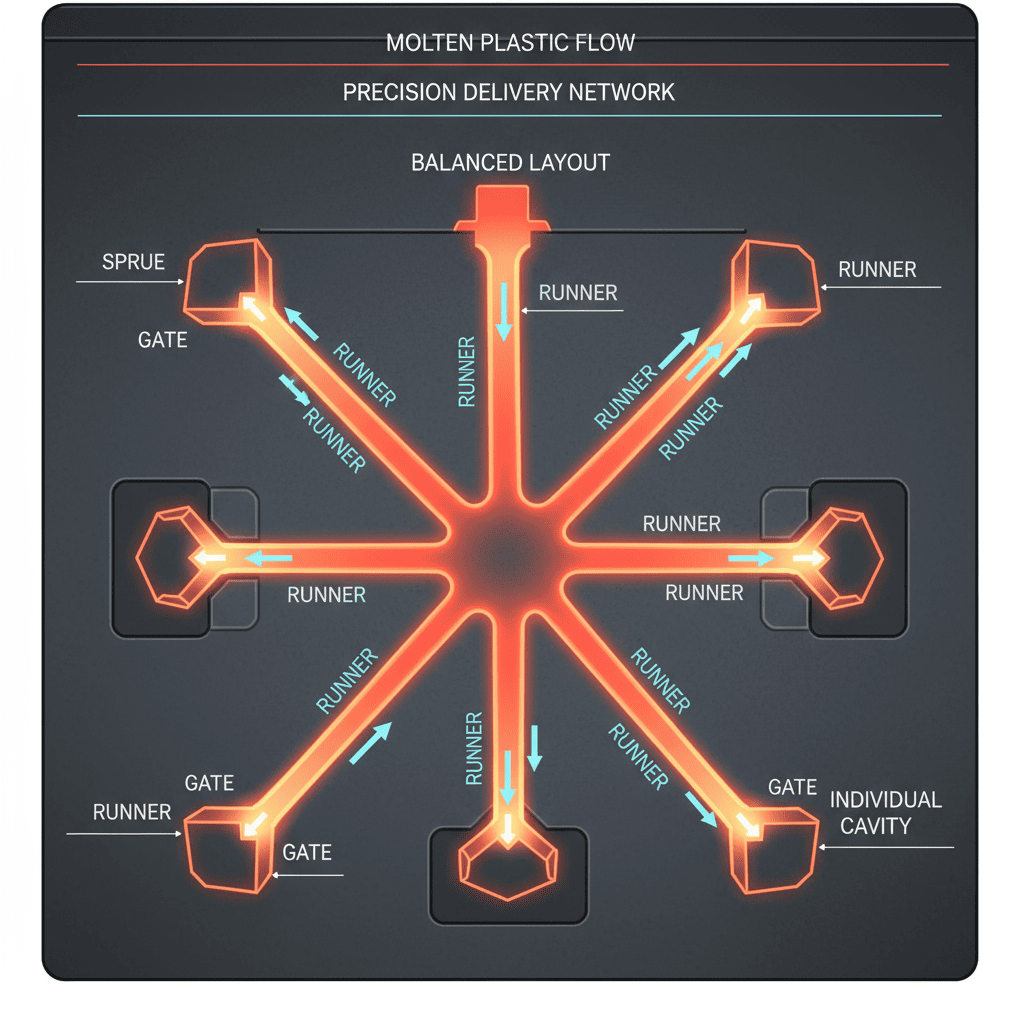

The runner works by acting as a precision delivery network. It takes molten plastic from the main entry point (the sprue) and distributes it, often through a balanced layout, to each individual cavity. It controls the flow rate, pressure, and temperature of the plastic right up to the gate.

Think of the runner as the mold's "precision vascular system." It’s not just a pipe. It's a carefully engineered network that has to perform three critical jobs perfectly. First, it transports the molten plastic. Second, it helps maintain the correct pressure during the injection and packing phase. Third, it controls the temperature of the melt as it travels. In multi-cavity molds⁴, where you're making several parts at once, this becomes even more important. We must create a "balanced" runner layout. This means the distance and path the plastic travels to each cavity is identical. I remember a project for an educational toy developer. They had an 8-cavity mold for small gear parts, and some gears were always weaker than others. The original mold had an unbalanced runner. We redesigned it with a symmetrical, 'H' pattern layout. The problem vanished instantly because every cavity filled at the same time and under the same pressure.

Key Aspects of Runner Function

Feature	Unbalanced Runner	Balanced Runner
Flow Path	Plastic travels different distances to each cavity.	Plastic travels the exact same distance to each cavity.
Filling	Cavities fill at different times and pressures.	All cavities fill simultaneously under equal pressure.
Part Quality	Inconsistent part weight, dimensions, and defects.	Consistent, uniform parts across all cavities.
Best For	Single cavity molds or simple, non-critical parts.	Multi-cavity molds and high-precision components.

Which type of runner is right for your project?

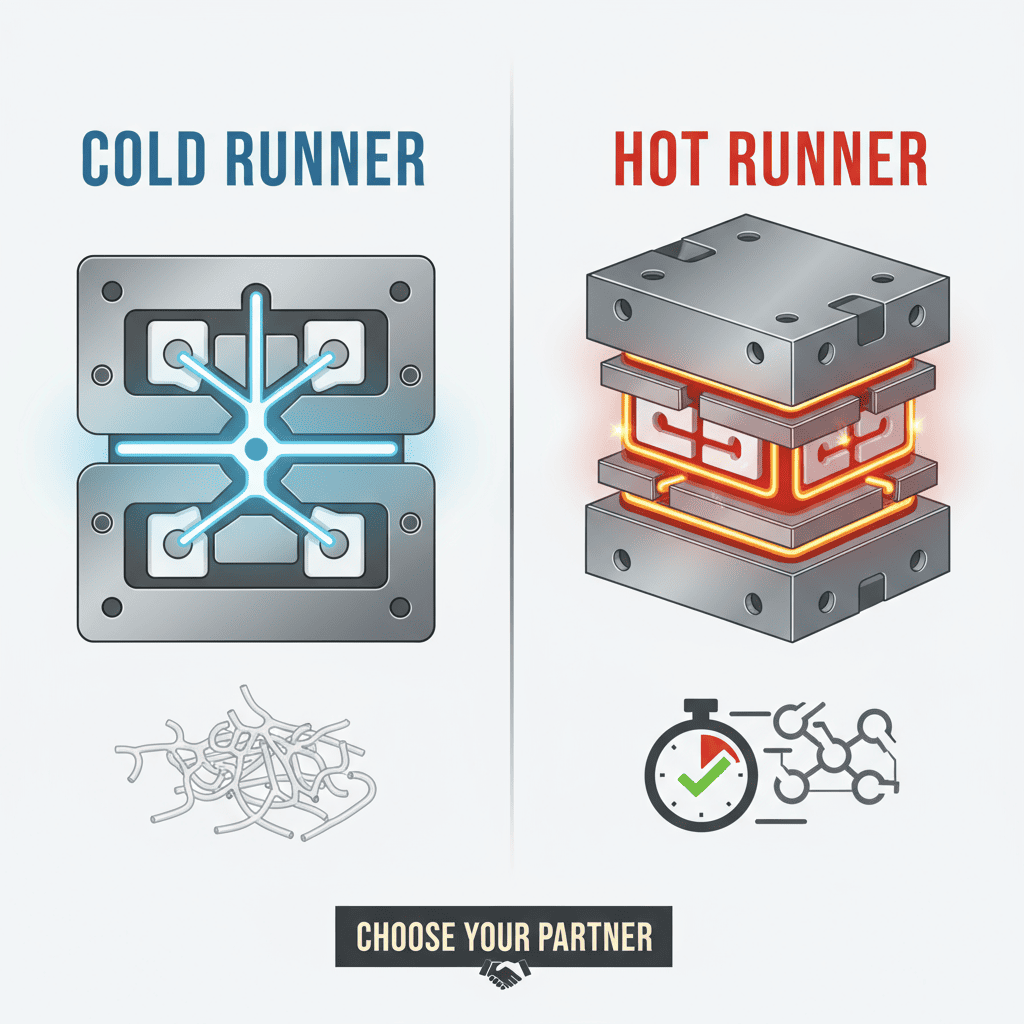

You are trying to choose between a hot runner⁵ and a cold runner⁶ mold. The wrong choice could mean high material waste⁷ with every shot or a huge upfront cost you can't justify. Let's find the runner type that fits your needs.

The right runner depends on your production needs. Cold runners are simpler and cheaper upfront but create waste material. Hot runners are more expensive initially but save material and reduce cycle times, making them ideal for high-volume production. A good partner will help you decide.

Choosing the right runner type is one of the most important decisions you'll make, and it's all about balancing cost and efficiency. At our plant, this is one of the first things we discuss with a new client. For a procurement manager at a large corporation, the total cost of ownership is everything. A cold runner mold might have a lower initial price tag, but you have to factor in the cost of the wasted plastic (the runner itself, which solidifies and is ejected with the parts) and the longer cycle times. For high-volume production, that waste adds up fast. A hot runner system, on the other hand, keeps the plastic in the runner channels molten. There's no waste. The cycle time is also faster because you don't have to wait for a thick runner to cool down. For a client making millions of cosmetic caps a year, we always recommend a hot runner system. The return on investment from material savings and increased output is huge.

Comparing Runner Systems

Feature	Cold Runner System	Hot Runner System
Initial Cost	Low. The mold is simpler to manufacture.	High. Requires heaters, thermocouples, and a controller.
Material Waste	High. The runner solidifies and is ejected as scrap.	None. Plastic in the runner stays molten for the next shot.
Cycle Time	Longer. You must wait for the runner to cool.	Shorter. Only the part needs to cool, not the runner.
Maintenance	Simple and low-cost.	More complex. Can be costly to repair or replace components.
Ideal Use Case	Low-volume runs, prototyping, materials sensitive to heat.	High-volume production, large parts, fast cycle applications.

How does runner design⁸ impact part quality⁹?

You approved a mold design, but the final parts have flow marks, weak spots, or warping. The problem is often hidden in the runner design⁸. These invisible flaws can compromise your entire product's integrity and appearance.

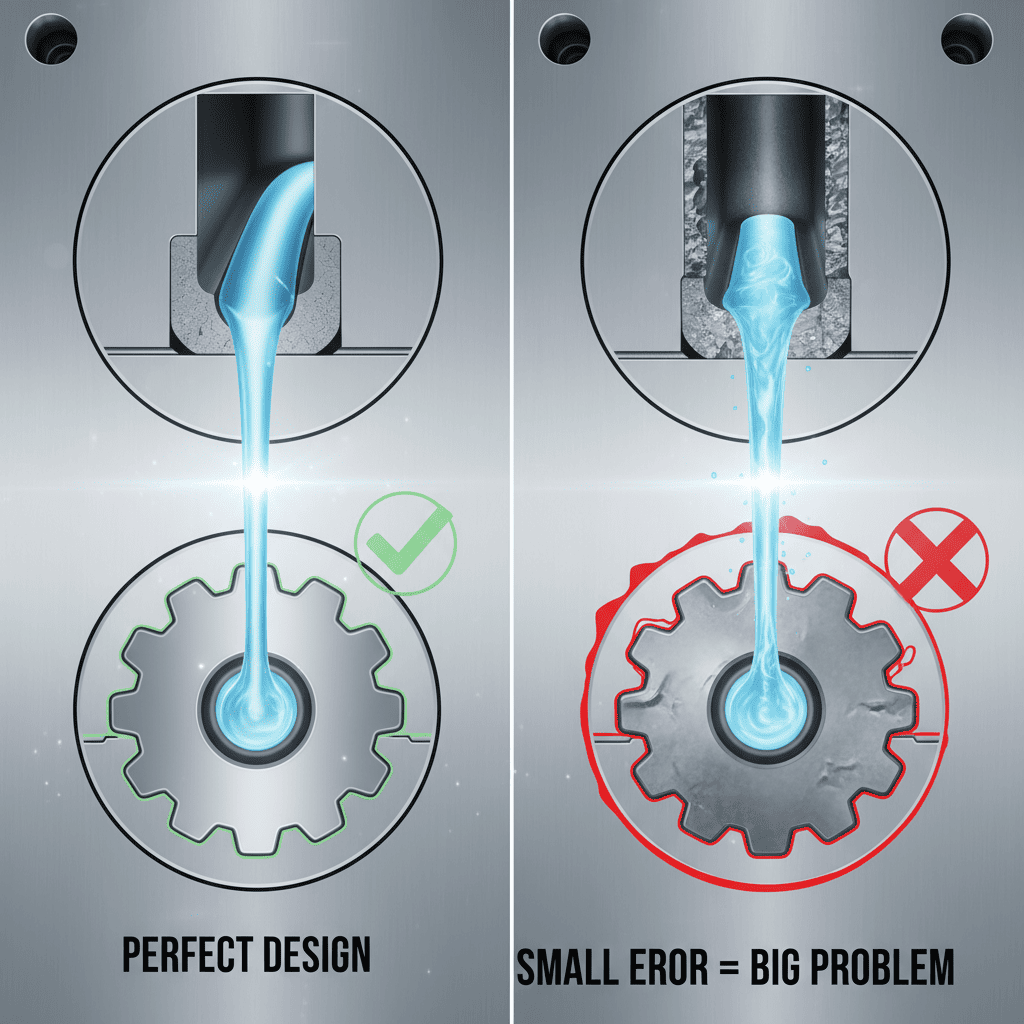

The runner is an "invisible quality controller." Its size, shape, and surface finish¹⁰ directly influence how the plastic flows. These design details determine the final part's mechanical properties, cosmetic appearance, and overall integrity. A small design error here creates a big quality problem later.

We treat the runner as a critical component of the part itself, not just a delivery channel. Every detail matters. The cross-sectional shape¹¹ is a good example. A full-round runner is the most efficient because it has the smallest surface area for its volume. This minimizes heat loss and pressure drop. However, it has to be machined into both halves of the mold, which is more expensive. A trapezoidal runner is a common compromise, as it's easier to machine into one mold plate. But the choice depends on the material. For a material like polycarbonate (PC), which is sensitive to shear, we would strongly recommend a full-round runner to ensure smooth flow. The surface finish is also crucial. We polish our runner channels to a mirror-like finish. A rough surface creates drag, slows the flow, and can cause the material to degrade, leading to black specks or weak spots in the final part. It’s these small, expert details that separate a high-quality mold from an average one.

Runner Design Factors and Their Impact

Design Factor	Importance	Impact on Quality
Cross-Sectional Shape	High	Affects pressure drop, heat loss, and shear rate. A full-round shape is most efficient for flow.
Runner Diameter	Critical	Too small, and the mold won't fill. Too large, and you waste material and increase cycle time.
Surface Finish	High	A polished surface reduces friction and prevents material degradation, ensuring clean, strong parts.
Gate Location & Type	Critical	Determines where the plastic enters the cavity, influencing weld lines, warpage, and cosmetic appearance.

Conclusion

In summary, the runner is far more than a simple channel. It's a critical system that directly controls your part's quality, your production efficiency, and your final project cost.

---
